drilling suction dredger

drilling suction dredger

drilling suction dredger

drilling suction dredger

Product Description
Drilling Suction Dredger is mainly for dredging thick mud layer. Firstly, the drilling bit goes to the
Bottom of mud layer. Then sand below the layer is pumped and being discharged to the bank through
pipeline. This dredger is particularly designed for these places where normal dredgers are not appropriate.

Company products

A:cutter suction dredger,bucket chain dredger,jet suction dredger,drilling suction dredger auto suction and discharge dredger,transportation barge

B:gold separating machine,land mining machine river mining machine

C:sand producing line,sand sieving and washing machine

D:mobile crushing station

Introduction

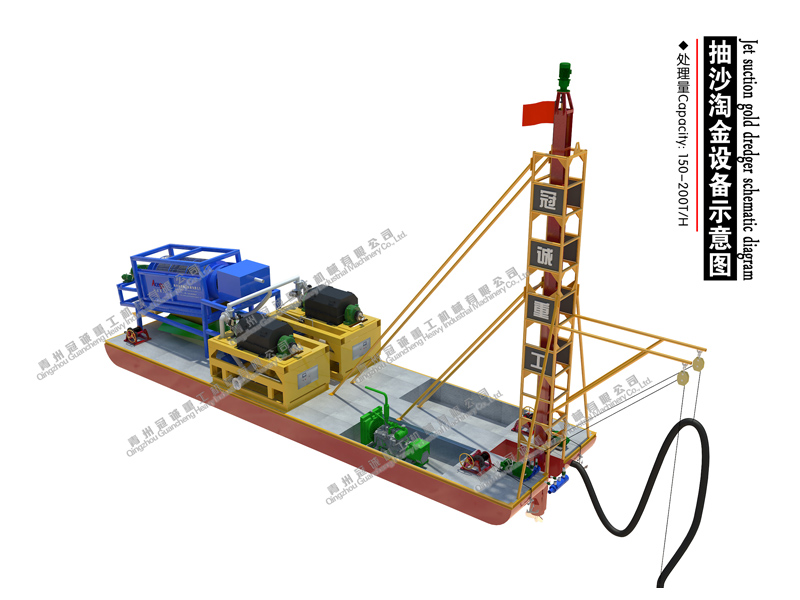

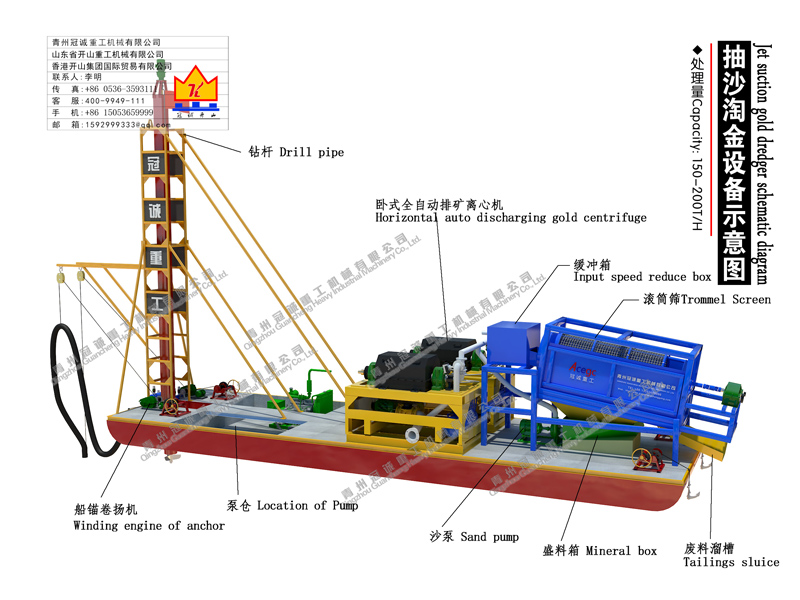

The machine is drilling type jet suction sand dredger, according to customer’s requirement manufactured by ourselves,with high recovery,seldom breakdown and very popular in abroad,the advantage:

1.The feeder of trommel screen by input speed reduce box,and with good performance of water supplying system to be wholly washed.

2.Including 2set of horizontal type auto discharging centrifuge,plc control and with highly efficent work,it’s steady no need placed with ground level(vertical type centrifuge cannot be used in portable unit)

3.High recovery of above 90%

4.Seldom breakdown and easy maintenance.

Detail parameter

Production

   Specifications

Quantity

PowerKW

  Remark

Pontoon

Size(L*W*H)20*5.5*0.88m,Steel thickness 4mm
CHeckered plate thickness:3.5mm

1Set



Location of pump

Length*width:4*3.6m

1Set



Main frame

Height:9.6m,Width:1m,Material Ø89 seamless tubing

1Set



Drill pipe

Length:13.2mCycloid pin7.5Kw motor

1Set

7.5


Winding engine of drill pipe


1Set

11


Rising wind engine


1Set

4.4


Jet suction pump

8inch diesel pump

1Set



Water pump

6inch

1Set



Winding engine of drill pipe

350#reducer Motor:11KW

1Set



Rising wind engine

Motor:2.2KW

2Set



Anchor

handling

4Set



The frame in pontoon

Material:63*39unequal angle steel

1Set



Centrifuge

1200#horizontal type auto discharging

2Set

43


Trommel screen

Inner diameter1.3m,outside1.6,
Length of trommel screen3m

1Set

7.5

including input speed reduce box

Sand pump

6inch

1Set

15


Total power

88.4KW






Who we are
Qingzhou Guancheng Heavy Industrial Machinery Co.,Ltd is a famous mine machinery factory in china.
Established in 1992,now we have 3companies,Guancheng,Qingzhou Kaishan Heavy Machinery Co.,ltd&Hongkong Kaishan Group International Trading Co.,ltd.
10years experience&our own professional engineers providing the proper solutions.
This is the first year on alibaba.com
Why choose us
Guancheng is doing the best to save your cost
Sign long term after sale service agreement wih customers
Free training of operation&we provide types of free accessory
we assemble and test the machine for customers
We welcome the factory visiting and it's very near qingdao
