wheel type sand washing plant
Product Description
Sand Washing Plant
Sand washing plant used for clean and separate the dust and powder from the sand. Its widely used in construction sites, sand plants, glass plant and desalination plant.

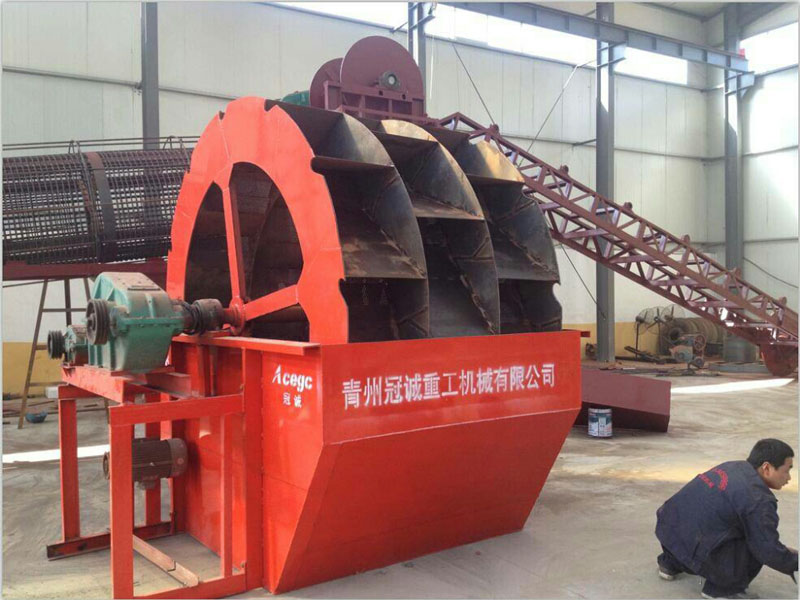

Wheel sand washing machine is a kind of sand washing equipment work matched with the sand making machine.
There are 3 type can choose ,Wheel type washer , Bucket type washer and Screw Washer
Working principle
When the machine working,the motor through the V-belt, reducer, gear slow down driven the impeller slowly rotation, sand has a trough into the tank, Rolling in the impeller driven, and grinding each other ,remove the impurities that cover the surface of the gravel.Destroys the water vapor of the sandy sand, in order to facilitate dehydration; at the same time with the formation of a strong water flow, the impurities and the proportion of small foreign body away from the overflow tank to discharge, to complete the cleaning effect. Clean sand from the leaves away, and finally the sand from the rotation of the impeller into the trough to complete the sand stone cleaning effect.
Model |
Capzcity |
return sand |
Power |
Weight |
G×2000 |
8-40 |
3-8 |
4 |
1900 |
G×2600 |
20-100 |
5-15 |
5.5 |
3500 |
G×2800 |
50-130 |
8-70 |
7.5 |
5100 |
G×3200 |
240-300 |
80-130 |
11 |
8800 |
G×3600 |
280-500 |
100-200 |
15 |
14200 |
