Mobile gold trommel with knelson concentrator

portable gold machine

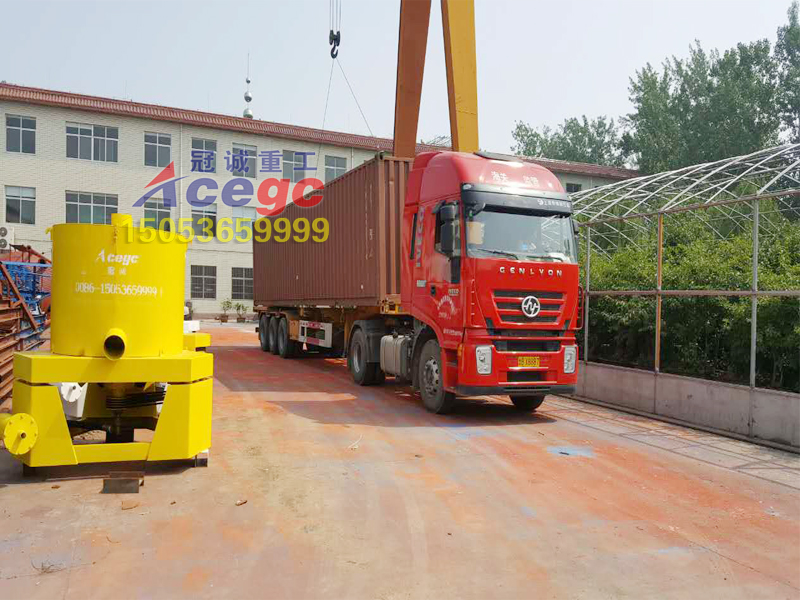

knelson centrigual concentrator

Gold mining machinery with knelson centrifuge concentrator
Brief Introduction

This set of mobile gold mining machine with vibrating feeder,trommel screen,transport conveyor and knelson centrifuge concentrator is based on our years' experience of mine machinery manufacturing, and constantly consummates the feedback information of users. It has the following advantages according to the traditional gold-dressing equipment:
1, All of them adopt the automobile chassis design, which is not affected by the terrain, and has a wider range of application, which can turn 180 degrees. It overcomes the shortcomings of the traditional sledge-type equipment, such as the inconvenient movement, the inconvenient steering and the strict requirements for the terrain.
2, The vibrating silo drum sieve is used for mineral screening and grading, which can effectively reduce the wear of the roller screen and improve the screening efficiency.
3, large amount of work capacity and high recovery rate.
4, the equipment integration degree is high, after many years production practice, the breakdown rate is low, the maintenance is simple, convenient.

5,With very little human work,it can reduce the cost of human resource.

6,With 2 set of 80#Knelson centrifugal concentrator,which can get high reconvery of gold concentrate.

Technical process

The mineral mixture getting into gold mining machine of vibrating feed hopper by excavator,firstly to get rid the useless minerals in very big size,it makes the machine more efficently and can redcue the abrasion,then the mineral getting into shaking feeder which located under the vibrating feeder,transporting by conveyor to reamers trommel screen to be classified to be:>15mm,6-15mm and<6mm.The mineral in big size>15mm to get rid and 6-15mm to be recovered by fixed gold sluice,the mineral in small size<6mm sending 2set knleson centrifuge concentrator by gravity feeding to get gold concentrate.

Detail parameter

Work capacity of gold mining machinery :               150-200T/h

Feeding:                                                              Advised to use excavator or loader

The highest feeding:                                             4.5m

Water pump:                                                        7.5Kw

Reamers trommel:                                                Diameter1.3m,length 2.2m

Trommel screen:                                                  Inner diameter 1.3m,Outer diameter1.6m,screen mesh 1.8m

Tyre:                                                                  2axles 12tyre

Driving speed:                                                     ≦15Km/h

Fixed sluice:                                                        1*6m

Gold concentrator:                                                 2set 80#Knelson centrifuge concentrator

                                                                           Outlet size:2750*2600*2150 Per set

                                                                           Power:11kw*2=22KW

Total power:                                                         40.2Kw

Generate set:                                                        advise to use 75KW generate set
