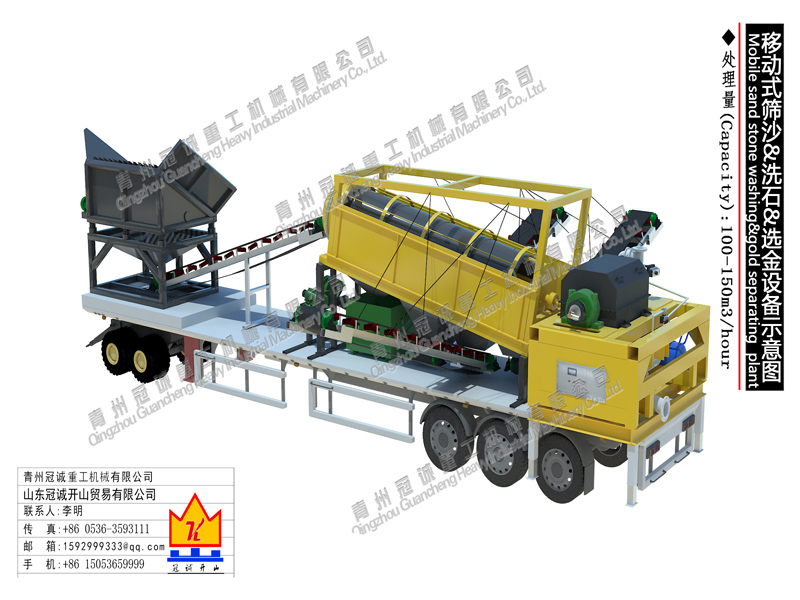

17.5M truck chasis 100-150m3/hour mobile sand stone washing gold mining machine

 mobile gold mining equipment

mobile gold mining equipment

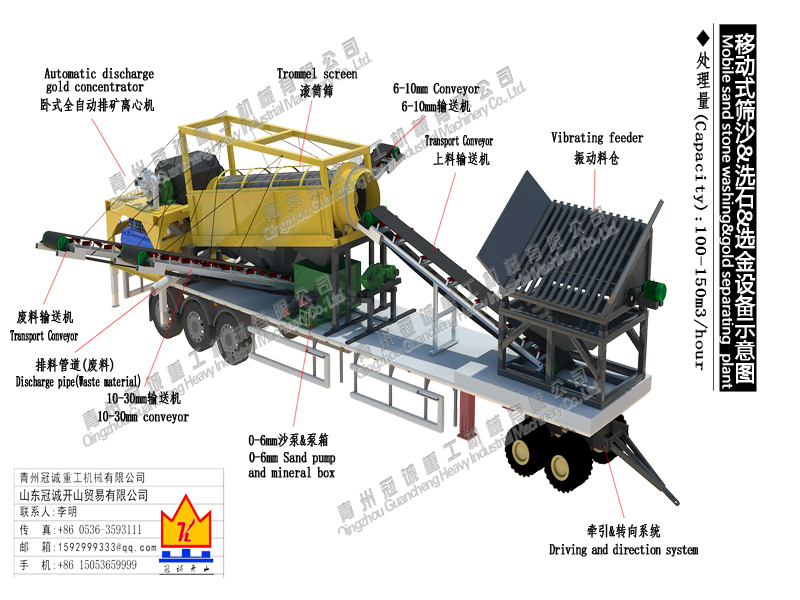

Technical process
The Raw material into vibrating feeder,then screening the one in big size stone to reduce the abrasion of trommel screen,the other into trommel screen to be classified into 4size 0-6mm; 6-10mm; 10-30mm >30mm
>30mm waste material transported by conveyor into scrap area;
10-30mm material transported by conveyor into destination area;
6-10mm material transported by conveyor into destination area;
0-6mm material into mineral box and send to 1200# horizontal automatic discharge gold concentrator by 1set 4 inch sand pump to get concentrate,the waste material discharged from discharge pipe.
Detail parameter

Production Name

Specification

Quantity

Power

Unit price

Total price

Remark


 Base plate


 Length 17.5m

1

-


 Used type


 Vibrating feeder

2000*2200

1

5.87


 Including vibrating feeder

Transport conveyor

Belt width 800mm,pole length 7m

1

7.5

Trommel screen

 Inner diameter 1.3m,outer diameter 1.6m,screen mesh 4.3m

1

11


 Centrifugal concentrator


 1200# horizontal gold concentrator

1

21.5


 Transport conveyor


 Belt width 600mm,pole length 6m

3

5.5*3


 Sand pump&mineral box


 4inch sand pump+11KW motor+mineral box

1

11


Centrifugal pump

1

5.5


Driving&directions system


 2axles 8Wheels

1

-

customized


 Electric box

1

-


Total power

78.87KW
