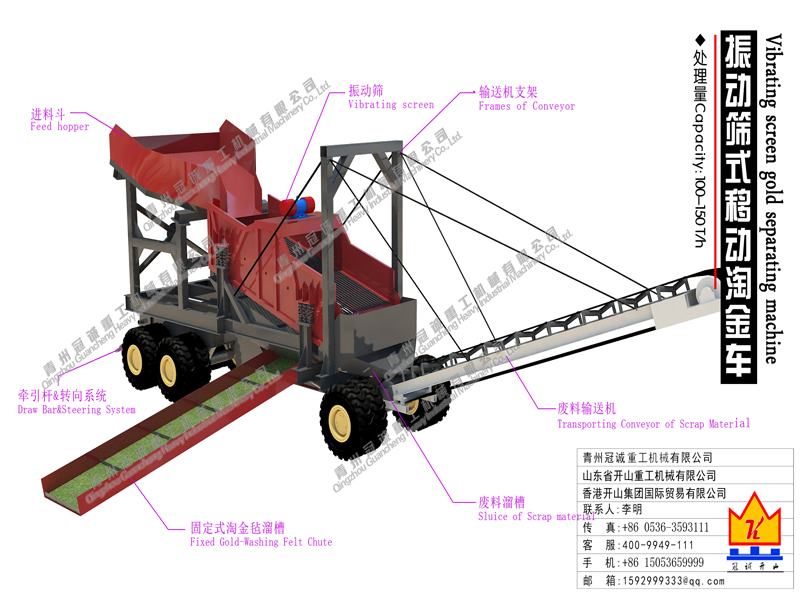

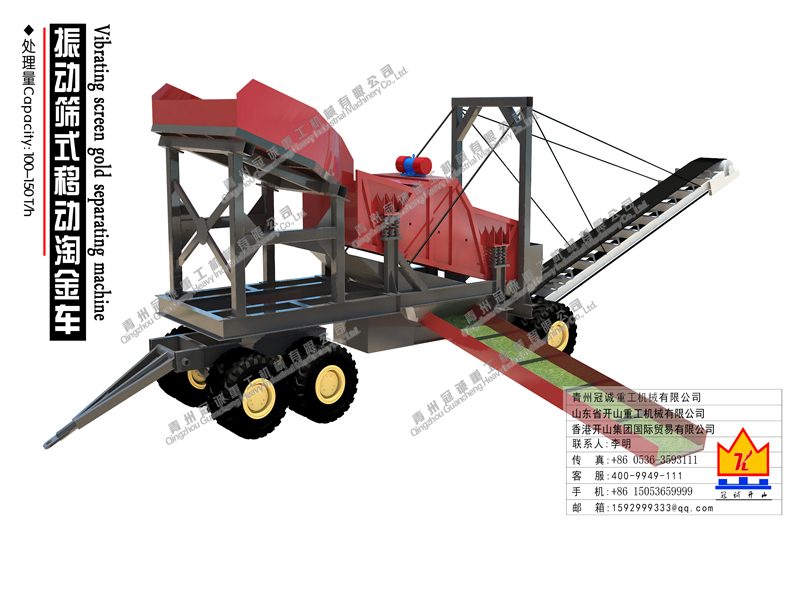

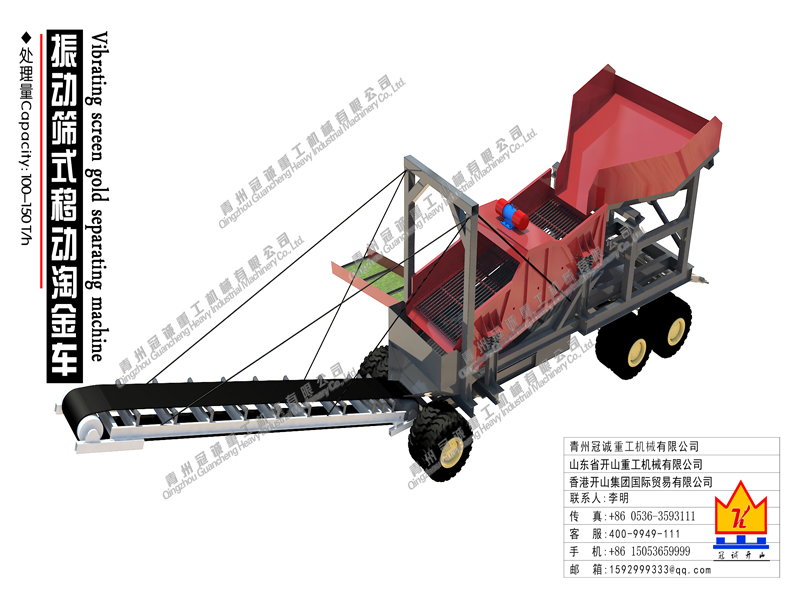

Work capacity 100-150ton/hour vibrating gold mining machine

gold mining machinegold mining machinegold mining machine


Brief Introduction-Gold mining machine,mining machinery

This set of gold mining machine is manufacture and designed according to customer's inquiry,the work capacity is 150ton/hour,and it's with simple structure and very easy to operate,the gold recovery with gold sluice and a good result to nuggett.It's a good choice to the investor who want to pay not too much monery at the begining and a good profit in return.

Detail parameter-Gold mining machine,mining machinery

Work capacity:                      150 T/h
Feeding type:                       By excavator or loader
 eeding size of material:        ≤300mm
 Feeding height:                    4.2m
 Feeding hopper:                  3000*2750mm
 The scrap conveyor:             Belt width:1000mm; Pole length:6000mm
 Power:                               Vibrating motor 3Kw;Conveyor 5.5KW;
 Water pump:                       7.5Kw
 Water needed:                    About 100m3/h
 Vibrating screen:                 4000*1500mm
 The tyre:                            3 axles 6 piece 900# tyre
 The driving speed:               ≦15Km/h
 The Fixed gold chute:           1*6m
