Capacity30-50tph Mobile gold mining machine and separating plants

Gold mining machine and mining machinery technical process

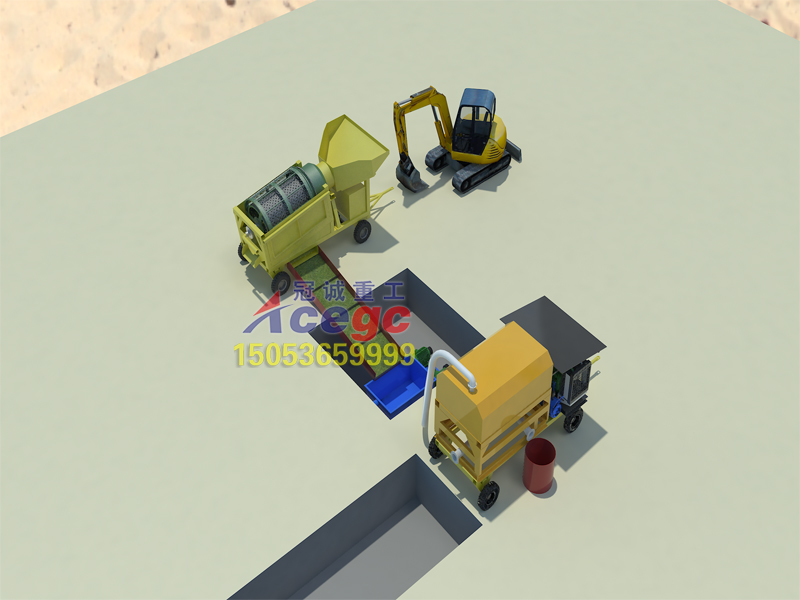

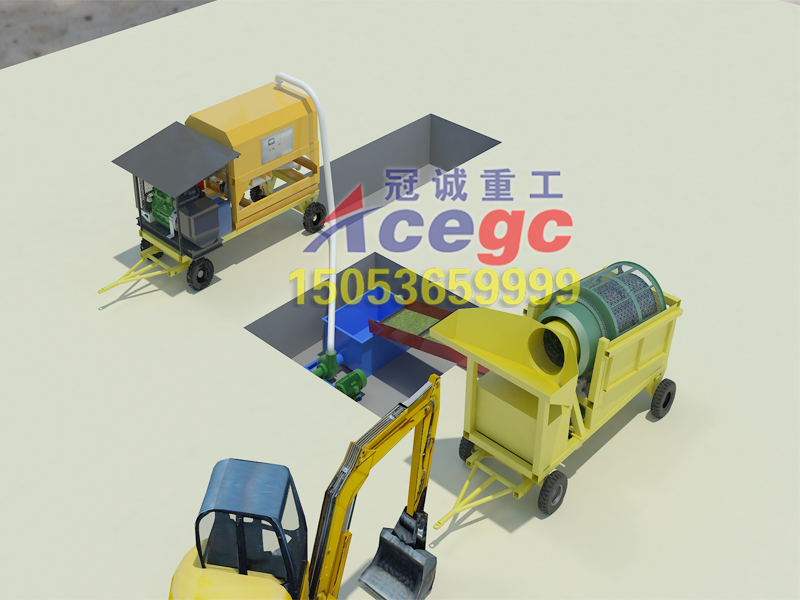

The material get into feed hopper from excavator then to be swilled into trommel screen with rotary reamers by high pressure water to get rid off the clay,to be classified into 2size,the one in big size is useless directly to be get rid to scrap area.
The one in small size get into the fixed gold sluice with carpet to separate the gold nugget,then flow into mineral box to be sending to horizontal automatic discharge gold concentrator by sand pump,the concentrate to be discharged into concentrate box,the scrap into the scrap pool.
Gold mining machine and mining machinery detail parameter

Production

Specification

Quantity

Power

Remark

Movable trommel screen separating car

Feeding size dia.≦200mm
Reducer：250#
Wate pump： 7.5Kw

Water needed：              100m3/h
Generator set     Diesel 20kw
Trommel screen: withrotary reamer
Inner diameter1m,outer diameter 1.3m
screen mesh 1.5m
Tyres            4pcs solid    tyres
Min radius of    turning circle：3.9m

Driving speed:≦15Km/h

1set

9.7KW

This movalbe trommel screen separating car including 1set 20kw diesel generator set,1pcs 4m length fixed gold slucie with carpet,1set 7.5kw water pump.

Production Name		Specification	Quantity	Power	Total
Centrifugal separating car	Gold concentrator	60#horizontal automatic discharge type	1set	5.5
	Base plate	Including holding frames tyres etc.	1pcs	-
	Air compressor		1set	3
	Centrifugal pump		1set	5.5
	Generator set	50KW	1set	-
