Mobile gold mining machine with centrifugal concentrator solution
Brief Introduction-Gold mining machine,mining machinery
This set of mobile trommel gold mining machine with vibrating feeder,trommel screen,transport conveyor and centrifugal concentrator is based on our years' experience of mine machinery manufacturing, and constantly consummates the feedback information of users. It has the following advantages according to the traditional gold-dressing equipment:
1, All of them adopt the automobile chassis design, which is not affected by the terrain, and has a wider range of application, which can turn 180 degrees. It overcomes the shortcomings of the traditional sledge-type equipment, such as the inconvenient movement, the inconvenient steering and the strict requirements for the terrain.
2, The vibrating silo drum sieve is used for mineral screening and grading, which can effectively reduce the wear of the roller screen and improve the screening efficiency.
3, large amount of work capacity and high recovery rate.
4, the equipment integration degree is high, after many years production practice, the breakdown rate is low, the maintenance is simple, convenient.
5,With very little human work,it can reduce the cost of human resource.
6,With 2 set of 80#Knelson centrifugal concentrator,which can get high reconvery of gold concentrate.
Technical process-Gold mining machine,mining machinery

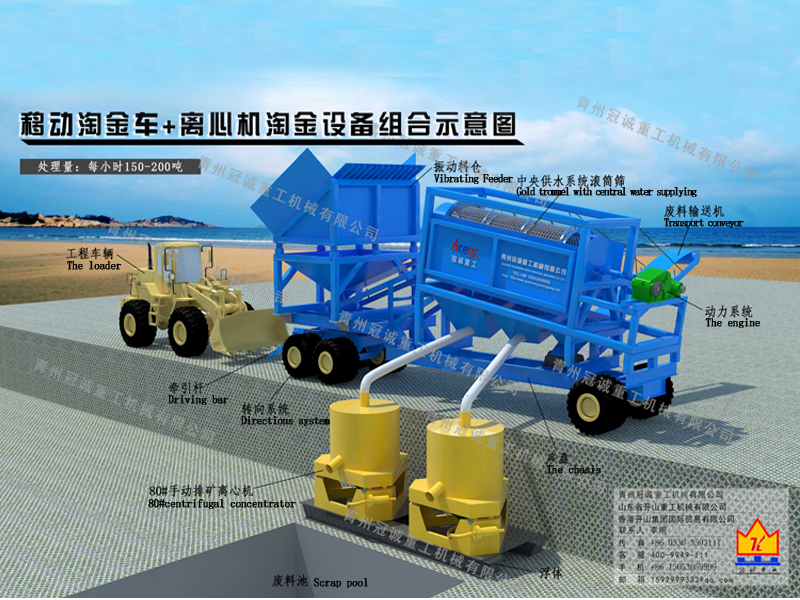

The mineral mixture getting into gold mining machine of vibrating feed hopper by excavator,firstly to get rid the useless minerals in very big size,it makes the machine more efficently and can redcue the abrasion,then the mineral getting into shaking feeder which located under the vibrating feeder,transporting by conveyor to reamers trommel screen to be classified to be:>15mm,6-15mm and<6mm.The mineral in big size>15mm to get rid and 6-15mm to be recovered by fixed gold sluice,the mineral in small size<6mm sending 2set knleson series centrifuge concentrator by gravityfeeding to get gold concentrate.
Detail parameter-Gold mining machine,mining machinery
Work capacity: 150-200T/h
Feeding: Advised to use excavator or loader
The highest feeding: 4.5m
Water pump: 7.5Kw
Reamers trommel: Diameter1.3m,length 2.2m
Trommel screen: Inner diameter 1.3m,Outer diameter1.6m,screen mesh 1.8m
Tyre: 2axles 12tyre
Driving speed: ≦15Km/h
Fixed sluice: 1*6m
Gold concentrator: 2set 80#Knelson type centrifugal concentrator
Outlet size:2750*2600*2150 Per set
Power:11kw*2=22KW
Total power: 40.2Kw
Generate set: advise to use 75KW generate set
