Gold refining machine Amalgamator introduction

Gold refining machine,alluvial gold equipment amalgamator

Advantage:
1, Beautiful appearance, stable and reliable performance
2, Energy-saving and efficient, simple and convenient operation
3, Thegold amalgamation operation mercury consumption to a minimum.
4, Indispensable in the amalgamation of gold concentrator equipment.

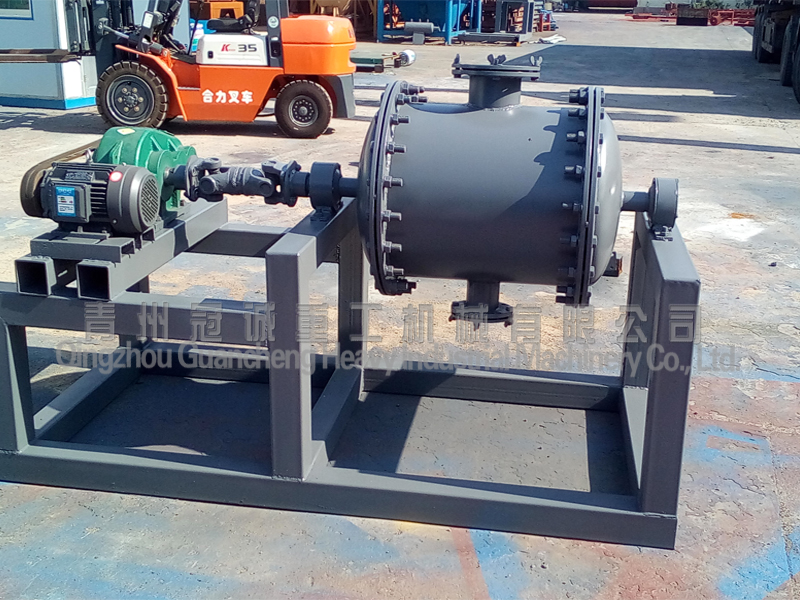

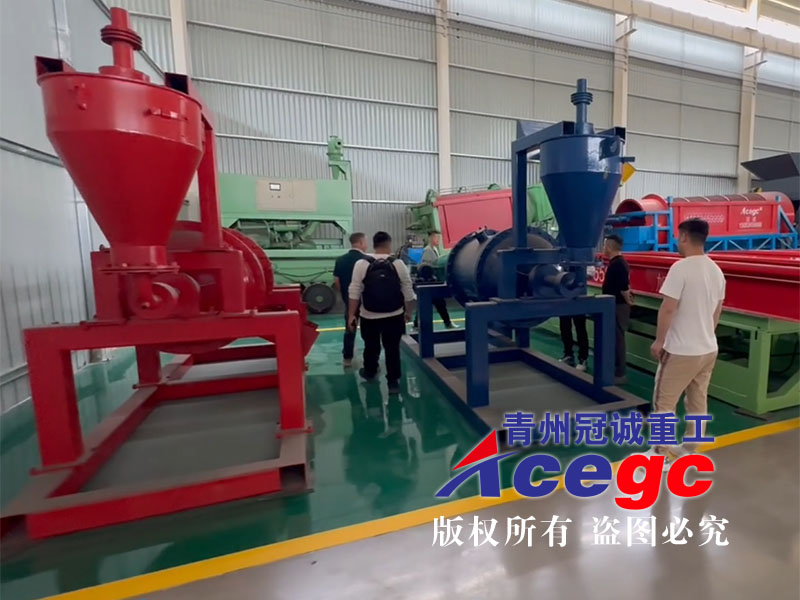

Auto/handle discharge amalgamator

Production	dimension/mm	Power/Kw	Capacity	Weight of steel ball /Kg	Remark
Handle discharge amalgamator	600*800mm	3	30KG/time	150-300
Handle discharge amalgamator	800*1200mm	3	50KG/time	200-400
Auto discharge amalgamator	1000*1600mm	5	100KG	300-500

Gold amalgamator- automatic and manual discharge instructions
1, the new machine for the first time please use the advanced line in turn run for at least 5 minutes, check the operation process whether there is abnormal sound and bearing parts of any overheating, such as hair
Please stop the problem in time, find the cause of the problem, repair or contact the manufacturer for consultation. If there are no problems, you can work normally
2, open the large flange amalgamation cylinder cover, join the ball (ball number table reference data on mercury (mercury), adding dosage adjustment according to how much added material).
3, add water, water to maintain the liquid level in the midline in Amalgamation cylinder above.
4, adding materials to be processed, the amount added at a time, please refer to the above table
5. Turn off the valve and start the machine. Please adjust the running time according to the actual needs
6, Turn off the machine, put in the amalgamation cylinder connected to the lower part of the feed box, the discharging pipe to the bottom and open the cover flange, the material into the hopper will be processed.
7, Attention:Mercury (mercury)is toxic, operation must bring good rubber protective gloves and qualified gas masks, to prevent mercury volatile gas poisoning, and ensure that not touched by skin especially wound
skin.
Note: the bearing should be  oiled  one time each 8hours.

Model	Specification		Capacity  (kg/h)	Weight(Kg)
	Diameter	Length
ZGQ-150	150	200	8-10kg/time  10min per time	10
ZGQ-200	200	220	10-15kg/time  15min per time

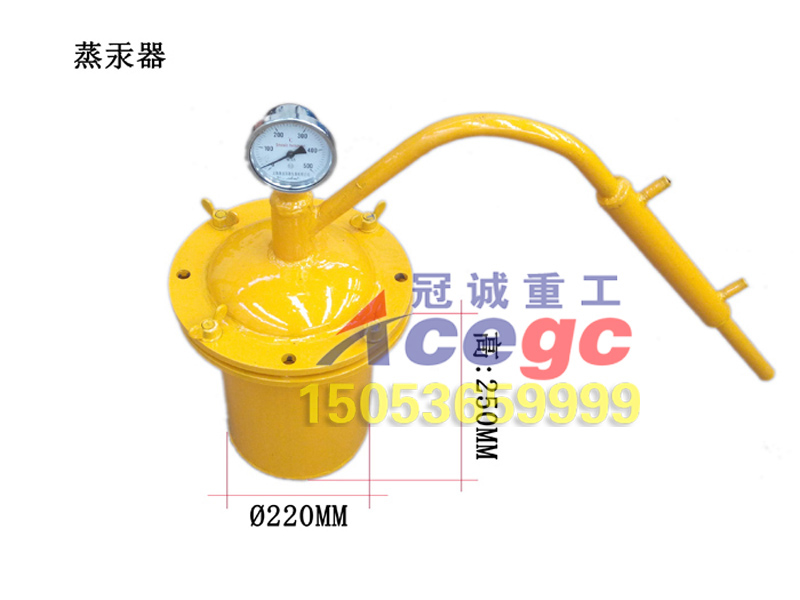

Gold mercury amalgamation Introduction:
Gold purify amalgamator is widely used in small gold mining plant for evaporation the Hg from the Hg+ gold mixture, and refining the pure gold.
Working principle:
Due to mercury gasification temperature is below the melting point and boiling point of gold. We commonly used the method of distillation to separate the gold from amalgam mercury.

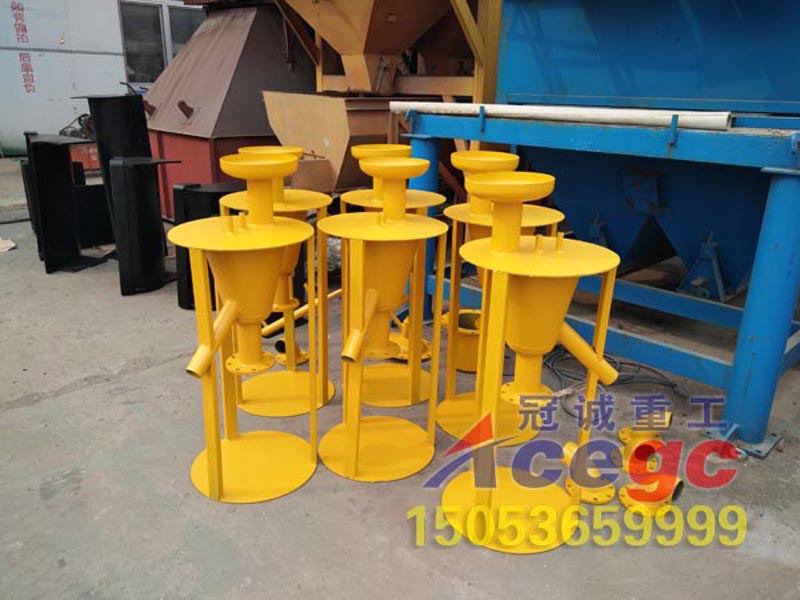

Amalgam of gold-mercury,sand separating machine

This machine is sand and gold mercury amalgam separator,it can be work with gold amalgamator and mercury retort .This alluvial gold after the equipment is used for mixing mercury amalgam machine operation separate heavy sand and amalgam, this set of alluvial gold equipment is Qingzhou guancheng heavy industrial machinery co.,ltd., designed and mature production, is simple and convenient to operate.
The using steps:
1, preferred good flush pipes, the diameter of the pipe is 20 mm, 4 "pipe, you can use the steel wire hose or ordinary snakeskin hose connection.
2 a bucket, waste mouth bottom, used for recycling waste discharge mouth of mercury.Mercury in the water, will settle at the bottom of the bucket.
3, to flush pipe water supply, adjust good valve size, etc to waste that can be added when the water out raw materials (heavy sand and amalgam mixture).
4, open the amalgam discharging mouth butterfly valve, and pay attention to the proper adjustment, don't opened entirely, the amalgam from discharging mouth eduction.
5, at this point, can undertake no between material feeding operation, when processing is complete, with steamed mercury amalgam purification.
6, Attn: because of toxic mercury (mercury), and therefore must take the rubber protective gloves when operating with qualified respirators, prevent mercury volatile gas poisoning, and make sure no contact with the wound.
